Explosion Proof Led High Bay Hazardous Location Lights Ufo Warehouse Ip65 120lm W

  • 1
  • 2

Brand Name : Crown Extra

Model Number : GYD8101

Certification : CE, ROHS, ISO. ATEX,

Place of Origin : China,Jiangsu

MOQ : 1 piece

Price : usd36-98 per piece

Payment Terms : T/T, Western Union

Supply Ability : 5000 pieces per month

Delivery Time : 5-15 working days

Packaging Details : Led Lights will be packed in carton, pallet

Product name : Explosion Proof High Bay Led Lights

Material : Die-casting aluminum

Color Temperature(CCT) : 5700K-6500K

Lamp Luminous Efficiency : 120 lm/w

CRI (Ra>) : 70±2

Working Temperature : -20℃-60℃

Application Area : Zone 2,21,22

Driver brand : MEANWELL

Light source : CREE

Voltage(V) : 100-240V

Contact Now

Maintenance Free Hazardous Location Explosion Proof Led High Bay Lights


Features:

1. Zone2, Zone 21,22
2. Instant on crisp white light output
3. High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial applications
4. Isolated LED compartment reduces temperature within driver housing
5. Multi choice of beam angle for 60° 90° 120°


Application:

1. Petroleum and Chemical Industry
Locations: Refineries, chemical plants, drilling platforms, gas stations, and oil depots.
Hazardous Materials: Flammable and explosive gases and vapors such as crude oil, natural gas, gasoline, benzene, and alcohols.
2. Coal Mining Industry
Locations: Underground tunnels, mining faces, and transfer stations.
Hazardous Materials: Gas (primarily methane) and coal dust.
3. Dust Explosion Environments
Locations: Flour mills, sugar refineries, feed processing plants, metal processing plants (aluminum and magnesium powders), wood processing plants, and plastics plants.
Hazardous Materials: Combustible dust suspended in the air.
4. Pharmaceutical and Food Industry
Locations: Some raw material workshops, ethanol extraction plants, and starch or sugar powder processing areas.
Hazardous Materials: Alcohol vapors and combustible dust.
5. Other Industrial Sites
Sites: Paint spraying workshops (solvent vapors), solvent warehouses, gas boiler rooms, and sewage treatment plants (may generate methane).
Hazardous Materials: Various flammable and explosive chemicals.


Specification:

European (ATEX) Gas and DustII 2G Ex nR e IIC T6
II 2D Ex td T80℃
For use inZone 2 & Zone 21, 22
Electrical data
Rated voltage100-240VAC, 50-60Hz
Power factor>0.95
THD<20%
Luminous characteristics
Power consumption [W]20～7080-100100-200220-300
Colour rendering [CRI]70 (±2)
Colour temperature [K]5700-6500
Luminaire efficiency [Lm/W]125
Beam angle120° (60°, 90° is optional)
Mechanical data
Degree of protectionIP66
Cable entryG 3/4”
Weight [kg]4.86.48.8/
Terminal≤2.5 mm²
Mounting StylesCeiling; Wall Bracket; Pendant


Explosion Proof Led High Bay Hazardous Location Lights Ufo Warehouse Ip65 120lm W

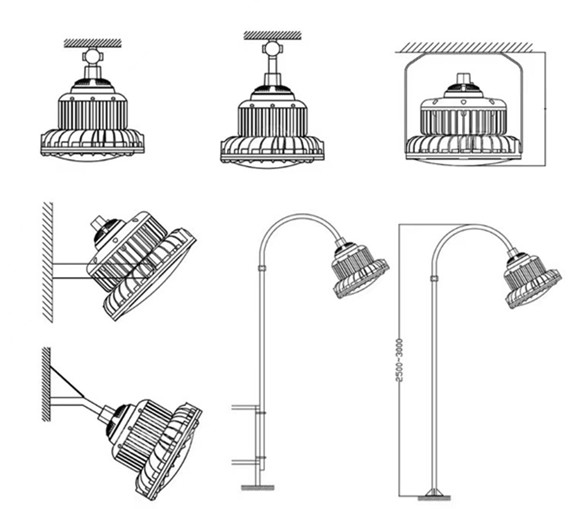

Installation method:
Bracket type, hoisting type, flange type, ceiling type, wall type

Explosion Proof Led High Bay Hazardous Location Lights Ufo Warehouse Ip65 120lm W
